Arduino, an open - source electronics platform, is widely used for prototyping and building various projects. Gas sensor modules can be easily integrated with Arduino to detect different types of gases, such as carbon monoxide (CO), methane (CH₄), and ethanol (C₂H₅OH). This guide will provide a comprehensive overview of integrating gas sensor modules with Arduino and their practical applications.

Understanding Gas Sensor Modules

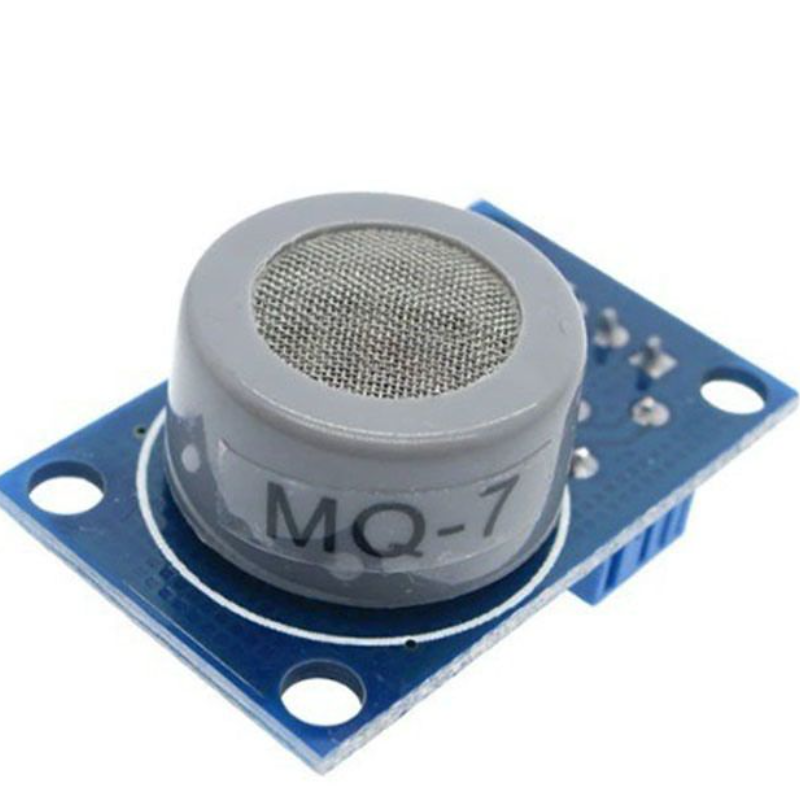

  • Types of Gas Sensors: There are several types of gas sensors available for Arduino projects. Metal - Oxide Semiconductor (MOS) sensors are the most common. They work based on the change in electrical conductivity when exposed to a target gas. For example, a MQ - 2 sensor can detect combustible gases like methane and LPG, while an MQ - 7 sensor is designed for carbon monoxide detection.
  • Working Principle: In MOS sensors, the metal - oxide surface adsorbs oxygen molecules when in clean air. When a target gas is present, it reacts with the adsorbed oxygen, changing the resistance of the sensor. This change in resistance can be measured and converted into a gas concentration value.

Integrating Gas Sensor Modules with Arduino

1. Hardware Connection
  • Power Supply: Most gas sensor modules require a power supply of 5V, which can be directly provided by the Arduino board. Connect the VCC pin of the sensor module to the 5V pin on the Arduino and the GND pin to the ground.
  • Signal Output: The sensor module has an analog output pin. Connect this pin to one of the analog input pins (e.g., A0) on the Arduino. This allows the Arduino to read the analog voltage value from the sensor, which is related to the gas concentration.
2. Software Setup
  • Arduino IDE: Open the Arduino Integrated Development Environment (IDE). Write a simple code to read the analog value from the sensor. Here is a basic example for reading the value from an MQ - 2 sensor connected to pin A0:
const int sensorPin = A0;
int sensorValue = 0;

void setup() {
  Serial.begin(9600);
}

void loop() {
  sensorValue = analogRead(sensorPin);
  Serial.print("Sensor Value: ");
  Serial.println(sensorValue);
  delay(1000);
}
  • Calibration: Gas sensors need to be calibrated to obtain accurate gas concentration values. Calibration involves determining the relationship between the analog output of the sensor and the actual gas concentration. This can be done by exposing the sensor to known gas concentrations and recording the corresponding analog values.

Applications of Gas Sensor Modules with Arduino

1. Home Safety
  • Carbon Monoxide Detection: Carbon monoxide is a colorless and odorless gas that can be deadly. By integrating a CO gas sensor module with Arduino, you can build a home carbon monoxide detector. When the CO concentration exceeds a safe level, the Arduino can trigger an alarm, such as a buzzer or an LED light.
  • Gas Leak Detection: For natural gas or LPG in homes, a gas sensor module can detect leaks. If a leak is detected, the Arduino can send a notification to the homeowner via a Wi - Fi or Bluetooth module, allowing for timely action to prevent potential explosions or fires.
2. Environmental Monitoring
  • Air Quality Monitoring: Multiple gas sensor modules can be combined with Arduino to monitor the air quality in a specific area. For example, sensors for detecting pollutants like nitrogen dioxide (NO₂) and ozone (O₃) can be used. The Arduino can collect data and send it to a server for further analysis and display on a web interface.
  • Industrial Emission Monitoring: In industrial settings, gas sensor modules with Arduino can be used to monitor the emission of harmful gases. This helps in ensuring compliance with environmental regulations and protecting the health of workers.

FAQ

  • Q: How often do gas sensors need to be calibrated?
    • A: The calibration frequency depends on the type of sensor and the environment in which it is used. In general, it is recommended to calibrate gas sensors every 6 - 12 months. However, in harsh environments with high levels of contaminants, more frequent calibration may be required.
  • Q: Can I use multiple gas sensor modules with one Arduino board?
    • A: Yes, you can. As long as the Arduino has enough analog input pins, you can connect multiple gas sensor modules. You may need to adjust your code to read and process the data from each sensor separately.
  • Q: What is the lifespan of a gas sensor module?
    • A: The lifespan of a gas sensor module typically ranges from 2 - 5 years. However, this can be affected by factors such as the operating environment, frequency of use, and the quality of the sensor.
