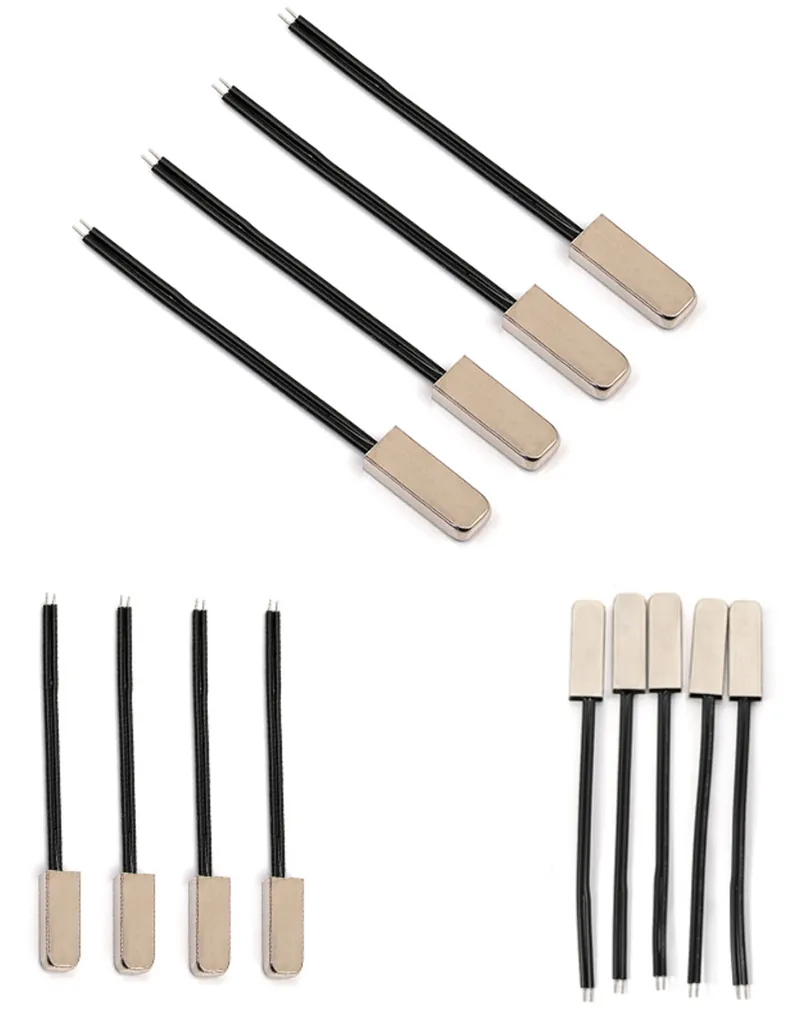

Rectangular shell temperature sensor
product information:

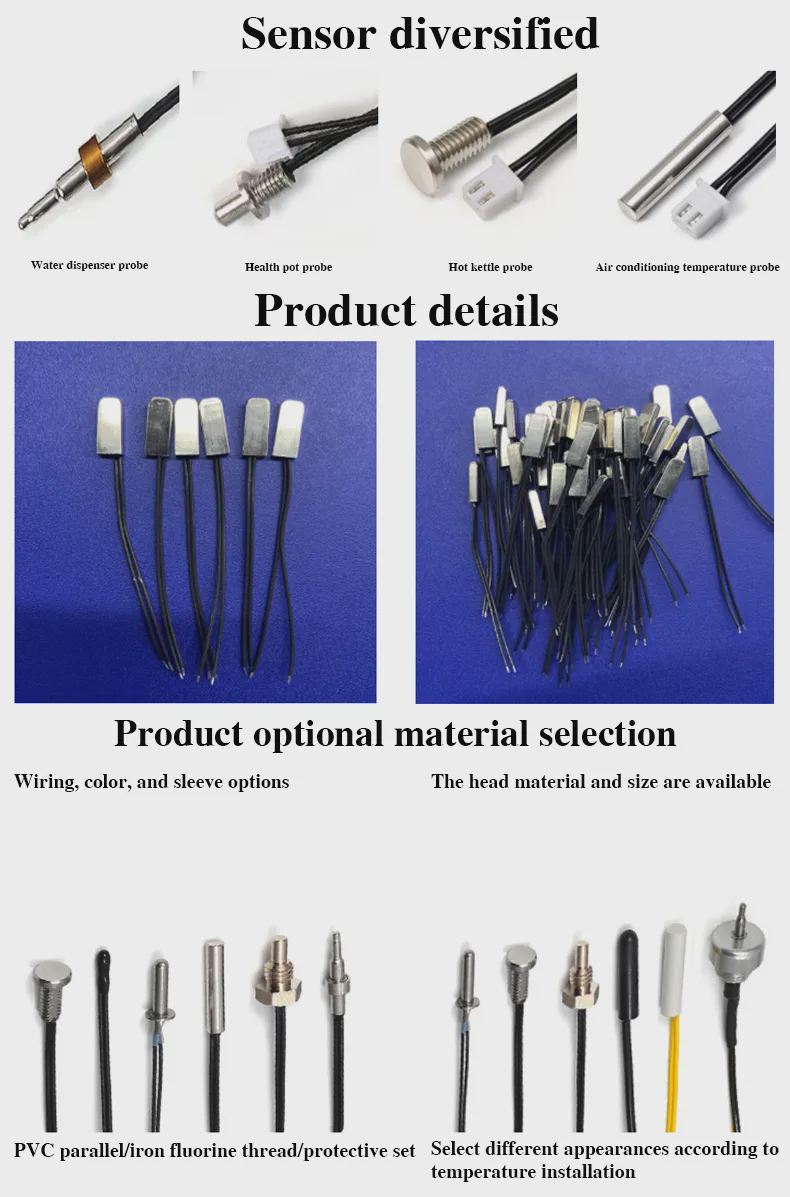

Picture probe: stainles° 501-02-s steel rectangular shell parallel parallel line 105 ° temperature measurement -20-105 °
Product common resistance: 5K3470 10K3435 10K3950 100K3950
Courdezise size: 20x7x3.5 customized
Circuit length: length wire color can be selected, wire: PVC Iron Fluorosaur
- Model Number:SL-NTC-WD-589
- Type:Temperature Sensor
- Place of Origin:Guangdong, China
- Brand Name:Gbeelee
- Usage:temperature measuring
- Description:Thermistor Temperature Sensor
- sensor type:Temperature measurement
- Temperature measurement:-20 ° -105 °
- Accuracy:± 1 %
- Output type:Simulation
- Operating temperature:100 (℃)
- Installation:Tube
- Encapsulation/shell:Square shell stainless steel
- Material:Epoxy resin
| Temperature sensor parameter | Nominal resistance value | B value | rated power | Dispersion coefficient | Hot time constant | Operating temperature |
| R25(Ω) | 25/50℃ | (mw) | (mW℃) | (S) | (℃) | |
| 5K3470 5K3950 10K3435 10K3950 15K3950 20K3950 50K3950 100k3950 [Other customable] | 5K 10K 15K 20K 30K 50K 100K 200K [Other customable] | 3435 3470 3800 3950 4100 4200 [Other customable] | ≤50 | ≥2.0 Static air | ≤15 Static air | -50~+300 |
