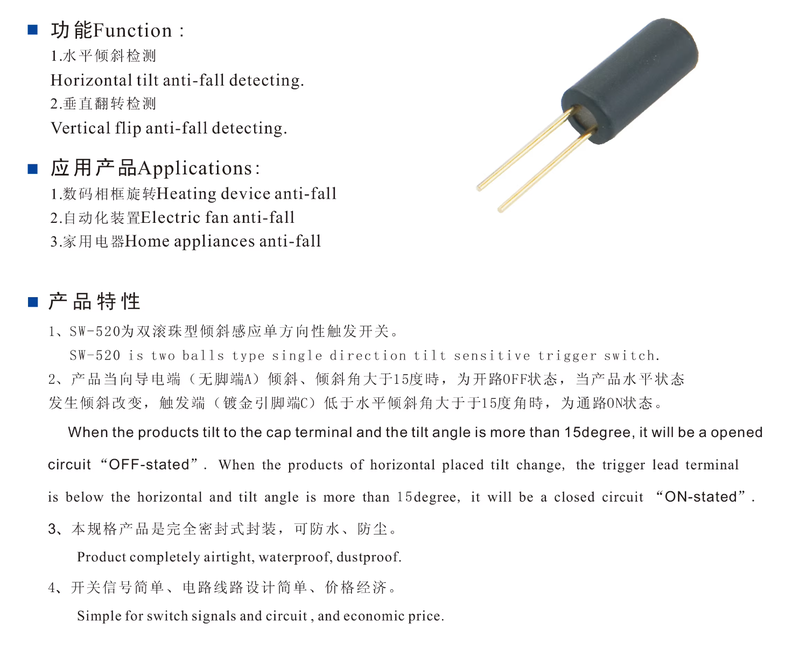

◆ .hctiwThe SW - 520D is a ball - type tilt - sensing unidirectional trigger switch.
◆ When the pro.etats NO tduct is tilted at an angle greater than 15 degrees towards the cap (end A), it is in the open - circuit OFF state. When the horizontal state of the product changes and the trigger end (the gold - plated pin end C) is tilted below the horizontal at an angle greater than 15 degrees, it is in the closed - circuit ON state.
◆ This product.seitr is fully hermetically encapsulated, providing water - proof and dust - proof properties.
Product Parameters
Voltage: 1 - 6V
Current: 2uA - 10mA
Conduction Mode: Discontinuous Conduction
Terminal Tensile Force: 500gf for 1 minute
Closed - circuit Resistance: <30 Ω
Salt Spray Test: 95% RH, 40℃ for 24 hours
Insulation Resistance: >10 MΩ
Operating Life: 200,000 cycles
Temperature Resistance: Operating: -40℃ to 85℃
