In today’s electronics curriculum, the humble diode is arguably the most overlooked component. While resistors, capacitors, and inductors enjoy extensive theoretical treatment, diodes rarely receive comparable attention. They lack the mathematical elegance of linear circuits and don’t command the spotlight like transistors. When people do marvel at diodes, it’s usually exotic variants—such as Gunn diodes or tunnel diodes—that capture interest, even though these are seldom encountered in real-world applications.
Today, let’s pay a s.edoid ”ymall tribute to the “ordinary” diode.
How a skroW eDiode Works
As discussed in a previous article on semiconductor physics, pure silicon is a poor electrical conductor. This is because it lacks long-lived, mobile charge carriers. Although thermal excitation can briefly promote valence electrons to higher energy states, enabling minimal conduction, these electrons quickly fall back and cannot travel far—making this effect negligible for practical purposes.
Conductivity improves dramatically through doping. Certain dopants introduce long-lived free electrons occupying higher energy levels with no lower-energy vacancies to return to—this creates n-type semiconductor material. Other dopants create easily accessible vacancies (or “holes”) in the valence band; in p-type material, lower-energy electrons can effectively “hop” between atoms without needing excitation to higher states.

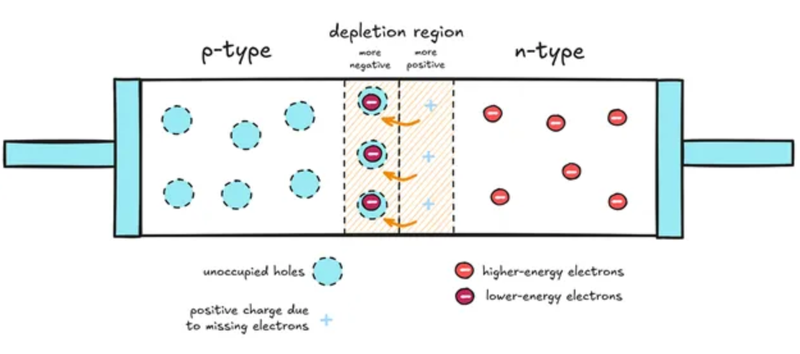

When n-type and p-type materials join, high-energy electrons from the n-side diffuse randomly into the p-side and rapidly recombine with abundant low-energy holes. This establishes an internal electric field across the junction, reaching thermodynamic equilibrium: the n-side becomes positively charged, and the p-side negatively charged.
This built-in field repels any mobile electrons that wander into the depletion region, pushing them back toward the n-side. The result is a thin, poorly conductive depletion zone at the boundary.
This internal field can be counteracted by applying an external voltage. If the p-side voltage is made significantly higher than the n-side (forward bias), current begins to flow. In silicon diodes, noticeable conduction typically starts around 600 mV, although microamp-level currents appear well before that threshold.

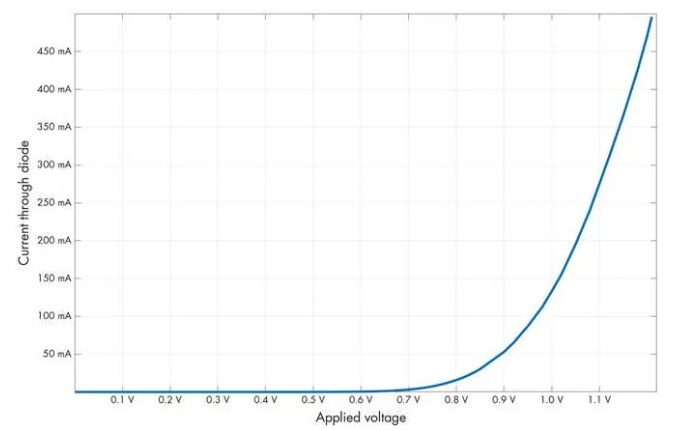

A conventional diode is simply a p-n junction—a basic voltage-controlled device. Below a certain threshold voltage, it exhibits very high resistance (often >100 kΩ), allowing almost no current. Above that threshold, it conducts increasingly well. The voltage-current (V-I) curve is initially exponential but soon becomes dominated by the semiconductor’s intrinsic resistance, leading to an approximately linear relationship between current and any additional applied voltage.

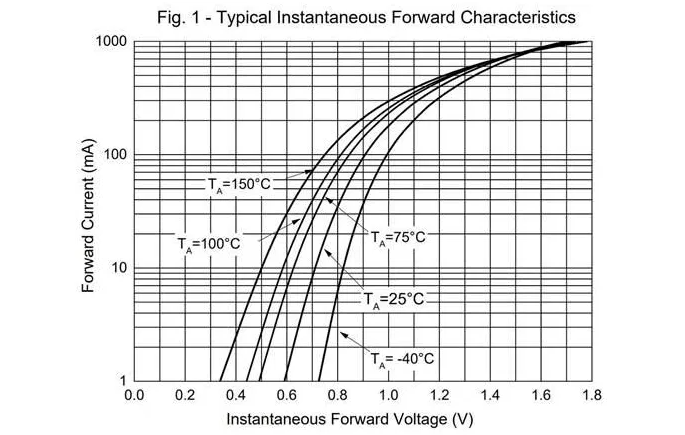

While precise mathematical modeling of real diodes is rarely useful, it’s worth noting that the V-I curve isn’t truly exponential. On a logarithmic scale—where exponential growth would appear as a straight line—the diode’s curve visibly bends, as shown in datasheets for common diodes like the 1N4148.
So far, we’ve discussed forward bias. In reverse bias (p-side voltage lower than n-side), the diode ideally blocks current. But reality is messier: if the reverse voltage becomes high enough, the electric field can accelerate stray charge carriers in the depletion region so violently that they knock other electrons into the conduction band, triggering an avalanche effect. This carrier multiplication causes unexpected conduction.
Most standard diodes are designed so their reverse breakdown voltage far exceeds normal operating ranges. However, a special class—Zener diodes—is engineered to break down reliably at precisely calibrated, lower reverse voltages. Once this threshold is crossed, the diode conducts robustly in reverse.
Practical Applications of Diodes
1. Circuit Protection
One of the simplest uses of diodes is safeguarding circuits:
Zener Clamp: A reverse-biased Zener diode connected between a signal line and ground remains non-conductive under normal conditions. But when input voltage exceeds a safe limit, it breaks down, acting like a “crowbar” that shunts excess energy to ground—protecting downstream components. Such devices are often sold as Transient Voltage Suppressors (TVS) and are critical for guarding semiconductors against electrostatic discharge (ESD).
Inductive Kickback Suppression: When power to motors or other inductive loads is suddenly cut, large voltage spikes can occur. A flyback diode placed across the load provides a safe path for the decaying current, clamping the spike.
Bidirectional AC Protection: For AC signals where polarity alternates, a pair of opposing diodes (or a single bidirectional TVS diode) ensures protection regardless of polarity. One diode conducts in forward bias while the other breaks down in reverse, yielding symmetric clamping thresholds (~600 mV + Zener voltage).
Reverse Polarity Protection: A standard diode in series with the power supply prevents damage if a battery is inserted backward. The trade-off is a fixed ~0.6 V drop and resistive heating at high currents—hence, transistor-based solutions are often preferred in low-voltage systems.
2. Voltage Reference
While most diodes withstand high reverse voltages (>100 V), Zener diodes are tailored to conduct at specific reverse voltages (e.g., 1.8 V to 30 V). Their key trait: once in breakdown, small changes in current cause only minor voltage fluctuations—making them useful as voltage references.
A simple reference circuit uses an unregulated source (like a battery), a current-limiting resistor, and a Zener diode. Despite input voltage swings, the output remains stable. For example, a 1N4733 Zener with a 100 Ω resistor yields less than 5% output variation for a 1 V input swing (45 mV vs. 1 V).
This concept can be cascaded: the output of one Zener reference powers a second stage with a lower Zener voltage. With proper design (e.g., R₁ ≪ R₂ or using a buffer transistor), stability compounds—5% × 5% = 0.25% ripple rejection. Though modern precision references use temperature-compensated transistor circuits, Zeners remain a viable quick-fix solution.
3. Rectifiers and Envelope Detectors
Consider the half-wave rectifier:
During the positive half-cycle of an AC input, the diode conducts, charging a capacitor to near the peak voltage (minus diode drop). During the negative half-cycle, the diode blocks, and the capacitor holds its charge. Adding a modest load resistor allows controlled discharge—creating a peak detector.
If the load discharges the capacitor fast enough to track amplitude modulation, the circuit becomes an envelope follower—a classic method for demodulating AM radio signals or measuring audio loudness.
However, half-wave rectification wastes the negative half-cycle. A full-wave bridge rectifier solves this: four diodes steer both halves of the AC cycle to charge the capacitor with consistent polarity, doubling the effective charging frequency and smoothing output ripple.
4. Voltage Doubler
Using the same switching principle, a voltage doubler generates DC output ≈ 2× the AC peak input (minus two diode drops). Two capacitors store the positive and negative peaks separately; their series combination yields double the amplitude. While modern designs often replace diodes with digitally controlled transistors (to eliminate voltage drops), the diode-based version remains instructive and functional.
5. DC Restorer (Clamper)
Many systems struggle with AC signals centered at 0 V—especially single-supply circuits that can’t handle negative voltages. A clamping circuit (or DC restorer) shifts the entire waveform upward so its negative peak sits near 0 V, preserving amplitude.
Operation:
- Initially, the capacitor is uncharged.
- On the first negative half-cycle, the diode conducts when the input reaches ~−600 mV, charging the capacitor to nearly the peak voltage.
- Thereafter, the capacitor’s stored voltage adds to the input, lifting the entire waveform.
An optional high-value resistor (e.g., 1 MΩ) or relying on natural leakage allows the circuit to adapt to changing signal envelopes. Use 10–100 µF capacitors for audio-frequency applications.
6. Diode Logic Gates
Simple OR and AND logic functions can be built with diodes:
- OR Gate: Inputs connect via diodes to a pull-down resistor. If any input is high, its diode conducts, pulling the output high.
- AND Gate: Inputs connect via diodes to a pull-up resistor. Only if all inputs are high (or floating) does the output go high; any grounded input pulls output low.
These are “pseudo-gates”—useful for single-stage decisions (e.g., alarm triggers or occupancy sensors)—but not suitable for cascading. Without active buffering, loading effects cause intermediate voltages instead of clean logic levels. True digital systems require gates with gain (e.g., transistor-based logic).
Conclusion
Far from being mere one-way valves, diodes enable clever analog tricks—from voltage regulation and signal demodulation to transient protection and level shifting. While overshadowed by flashier components, their simplicity, reliability, and versatility make them indispensable in both vintage and modern electronics. So next time you see a diode, give it the respect it deserves—it’s doing more than you think.
