Common Types of Vibration Switches Used in Smart Toys
Mercury VibratsehctiwS ion Switches
Mercury vibration switches are one of the traditional types used in smart toys. They operate based on the movement of mercury inside a sealed glass tube. When the switch is tilted or vibrated, the mercury moves and connects two or more electrodes, closing the electrical circuit. This type of switch is known for its high sensitivity. For example, in a smart interactive doll, a mercury vibration switch can be used to detect even the slightest movement, such as when the doll is gently picked up or rocked. However, mercury is a toxic substance, and there are environmental and safety concerns associated with its use. As a result, the use of mercury vibration switches is becoming less common.
Ball Vibration Switches
Ball vibration switches consist of a ball inside a tube or cavity. When the switch experiences vibration or movement, the ball rolls and makes contact with the electrodes, completing the circuit. These switches are relatively simple in design and cost - effective. They are suitable for toys that require moderate sensitivity. For instance, in a kinetic - driven toy car, a ball vibration switch can be used to start the car when it is shaken. The ball vibration switch can also be adjusted to different levels of sensitivity by changing the size and weight of the ball and the shape of the cavity.
Spring Vibration Switches
Spring vibration switches use a spring as the moving element. When the switch is vibrated, the spring deforms and makes contact with the electrodes, closing the circuit. Spring vibration switches offer good durability and can be designed to have a specific sensitivity. They are often used in toys that need to withstand more intense vibrations. For example, in a fun sports toy like a slapping - activated glowing ball, a spring vibration switch can ensure reliable triggering even after multiple impacts. The spring can be made of different materials, such as metal or plastic, depending on the requirements of the toy.

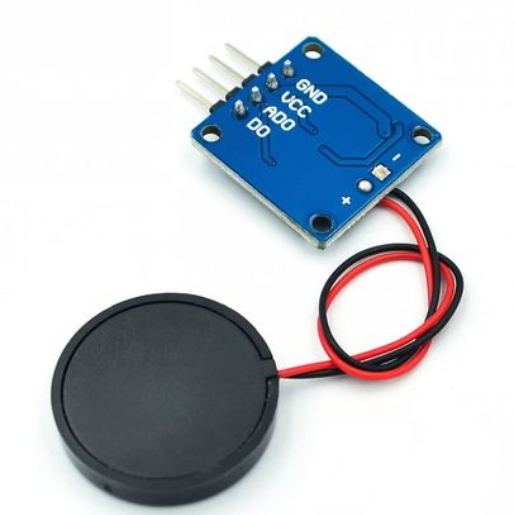

Piezoelectric Vibration Switches
Piezoelectric vibration switches are based on the piezoelectric effect. When a mechanical stress is applied to a piezoelectric material, an electric charge is generated. These switches are highly sensitive and can detect very small vibrations. They are also energy - efficient as they do not require a continuous power supply to operate. In STEM education and DIY kits, piezoelectric vibration switches can be used to introduce students to the concept of energy conversion. For example, a piezoelectric vibration switch in a scientific experiment kit can be used to detect the vibration of a sound wave and convert it into an electrical signal for further analysis.
FAQ
- Q: Are these vibration switches safe for children to use in smart toys?
A: Most modern vibration switches used in smart toys are designed to meet strict safety standards. However, it is important to ensure that the toys are properly tested and certified. For example, non - toxic materials are used in ball and spring vibration switches, and piezoelectric vibration switches do not pose any toxic risks. Mercury vibration switches, as mentioned earlier, have safety concerns due to the presence of mercury. - Q: Can I use different types of vibration switches in the same toy?
A: Yes, it is possible to use different types of vibration switches in the same toy. For example, a toy may use a ball vibration switch for overall movement detection and a piezoelectric vibration switch for more precise vibration sensing. This can enhance the functionality and interactivity of the toy. - Q: How do I choose the right vibration switch for my smart toy?
A: Consider factors such as the required sensitivity, the type of movement or vibration to be detected, the power consumption, and the cost. If the toy needs to detect very small vibrations, a piezoelectric vibration switch may be a good choice. For toys that require moderate sensitivity and cost - effectiveness, a ball vibration switch may be suitable.
