We have stepped into the intelligent era. The demand for wireless short - range communication in various fields such as smart home appliances, wearable devices, and industrial automation is skyrocketing. However, the development of this industry has long been hampered by a significant pain point: the fragmentation of wireless protocols among different devices makes interconnection under the 2.4GHz frequency band a formidable challenge. This not only drives up the research and development costs of smart devices but also negatively impacts the user experience.
A new addition to the STM32 wireless MCU series - the STM32WBA6 - has emerged as an effective solution to this problem. It seamlessly supports multiple protocols on a single chip, thereby constructing a new ecosystem of efficient interconnection for smart wireless devices.
Core Breakthrough: Single - chip Support for Multi - protocol Concurrent Communication
Traditional wireless MCUs typically can only support a single protocol. When multi - protocol communication is required, chips supporting different protocols must be configured. This not only inflates hardware costs and occupies more PCB space but may also result in communication delays or instability due to coordination problems between chips.
The core strength of the STM32WBA6 lies in its ability to enable the simultaneous operation and concurrent communication of multiple protocols on a single chip. Specifically, the STM32WBA6 allows for the concurrent use of Bluetooth Low Energy and the 802.15.4 standard on a single chip. It supports protocols such as Bluetooth Low Energy, Zigbee, Thread, Matter, etc., which operate in the 2.4GHz frequency band, and enables the use of multiple protocols for concurrent communication simultaneously.
For instance, an intelligent central control device based on the STM32WBA6 can simultaneously receive mobile phone control commands via Bluetooth Low Energy, connect all the lights and curtains in a house via Zigbee, and synchronize sensor data via Thread. These three operations occur without interference, truly achieving "one - chip linkage across all scenarios". This makes it particularly suitable for the current requirements of cross - brand interconnection in smart homes and multi - node communication in industrial devices.
Performance Upgrade, Adapted to Complex Application Requirements

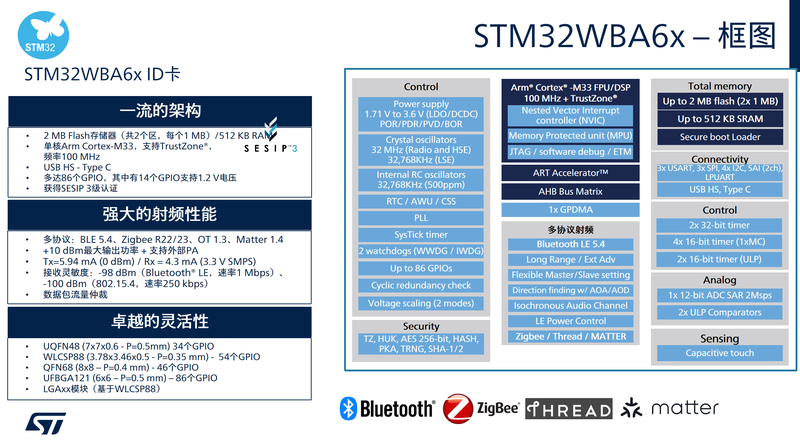

Compared with the STM32WBA5, the STM32WBA6 features a new dual - zone flash design, equipped with two 1MB flash memories, and the RAM has been increased to 512KB. This enables the STM32WBA6 to serve as the single - chip main MCU of a Matter end - node device, supporting over - the - air updates and concurrent modes.
As the first STM32 low - power Bluetooth chip equipped with a high - speed USB 2.0 controller, the STM32WBA6 brings great convenience to industrial applications and development debugging. It is highly suitable for engineers to perform burning operations, maintenance, or log analysis in industrial applications and can quickly fill additional memory when burning firmware. In addition to the high - speed USB interface, the STM32WBA6 has also added several additional digital interfaces.
The STM32WBA6 has also introduced multiple digital interfaces (such as I2C, SPI, UART), which can be directly connected to peripherals like displays, temperature and humidity sensors, and motor drivers without the need for additional expansion chips. This further simplifies the hardware design.
Outstanding Features: Low Power Consumption and High Reliability
For wireless devices, power consumption and radio frequency (RF) performance are the crucial factors that determine their "lifespan" and "user experience". Battery - powered wearable devices require low power consumption to extend battery life, while industrial devices need stable RF performance to handle interference in complex environments. The STM32WBA6 performs remarkably well in both these aspects.
Leveraging the manufacturing process advantages of ST, a global IDM chip manufacturer, the STM32WBA6 has achieved significant breakthroughs in power consumption and radio frequency (RF) performance. It is equipped with a new STOP2 low - power mode, with a current consumption as low as the micro - ampere level, and can detect wireless wake - up signals in real - time.
In terms of RF performance, the output power of the STM32WBA6 reaches as high as + 10dBm. The communication distance in an open environment exceeds 200 meters, and it has strong penetration. The receive sensitivity at a rate of 250kbps of IEEE 802.15.4 is - 100.5dBm. Even in scenarios with severe interference in the 2.4GHz frequency band, such as shopping malls and factories, it can minimize signal packet loss and ensure stable communication.
More importantly, it is pin - to - pin compatible with the STM32WBA5. Enterprises can complete the upgrade without modifying the PCB board. Additionally
